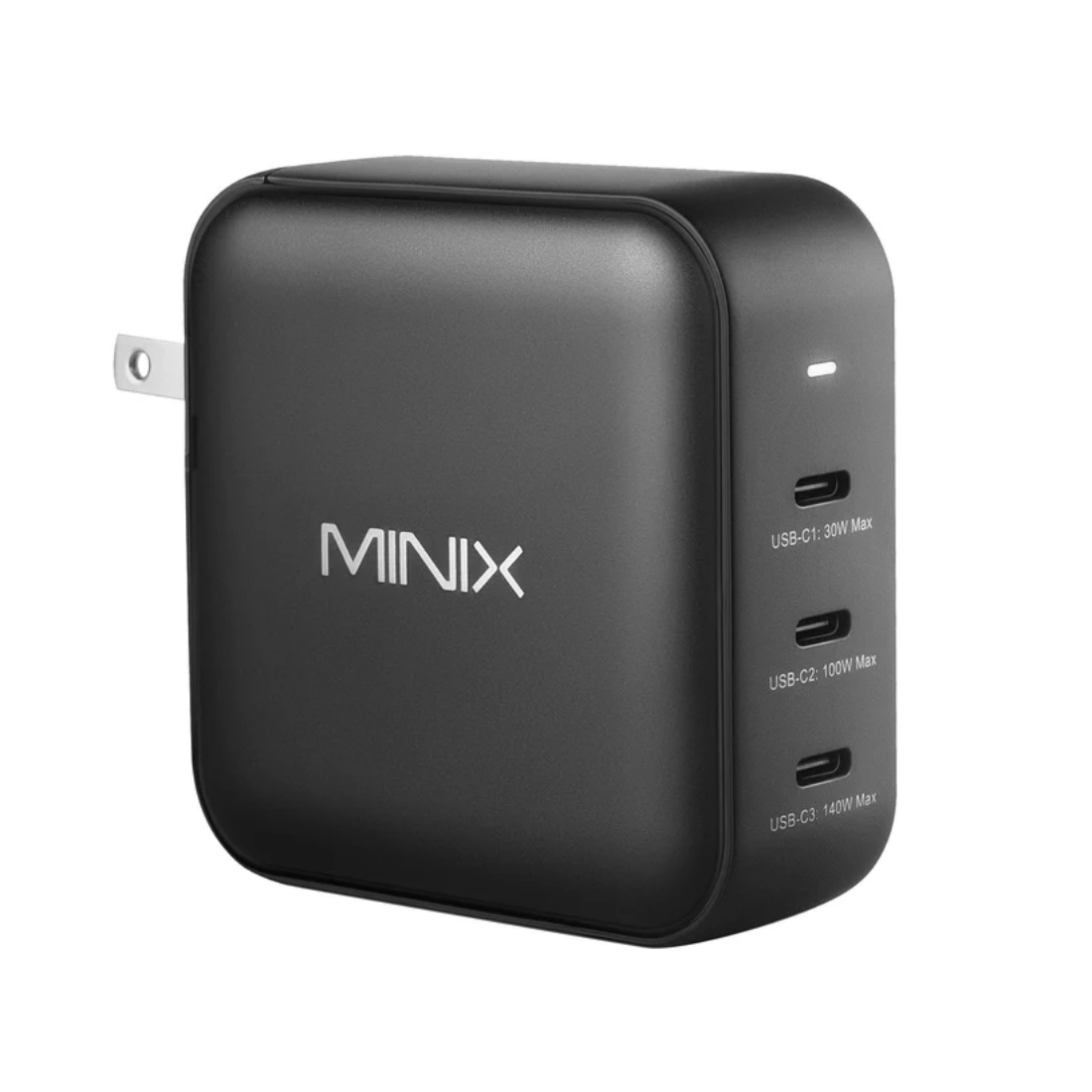

NEO P140

$74.90

MINIX’s 140W Turbo 3 USB-C Ports GaN Charger (MINIX NEO P140) consolidates multiple chargers into one, combining three USB-C ports（30W/100W/140W), total output 140W. For volume customers only. Contact Madison at 650-834-9451.

Overview
Reviews
Contact Us

MINIX’s 140W Turbo 3 USB-C Ports GaN Charger (MINIX NEO P140) consolidates multiple chargers into one, combining three USB-C ports（30W/100W/140W), total output 140W.

NEO P140 consolidates multiple chargers into one, combining three USB-C ports. Ideal for in the office, at home or travelling.

Powered by the latest Gallium Nitride (GaN III) Technology chip,with a unique partition cooling system, allows for a more efficient low-temperature and fast charging experience, it can increase the charging efficiency up to 95%.

Built-in foldable wall plugs (no messy bulky power cables), supports worldwide universal 100-240V~50/60Hz and comes with US/UK/EU pin converters so that it can be traveling on-the-go.

Dynamic Smart Detection – The turbo charger automatically adjusts the power output of each port depending on the devices connected to it. So, no matter what device is plugged into the end of your cable, it will be charged quickly and safely.

Q1: Why does it sometimes wake up my device when I plug in or unplug another device?

A1: When multiple devices are connected at the same time, plugging a new device in or unplugging any of the devices from the charger, it will render short charging pause for other devices to adjust the output power of each port.

Next-Gen GaN Technology

The MINIX NEO P140 140W Turbo 3-Port GaN Wall Charger utilizes cutting-edge Gallium Nitride (GaN) technology, delivering exceptional power in a lightweight and compact design.

Power Sharing Technology

With 140W of power and 3 USB-C ports, the charger supports simultaneous charging for laptops, tablets, and smartphones, ensuring your devices stay powered up efficiently.

Specifications

Power distribution when using single port
1. C1 (Max 30W):
PD → 5V/3A,9V/3A,12V/2.5A,15V/2A,20V/1.5A
PPS → 4-11V/3A
2. C2 (Max 100W):
PD → 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A
PPS → 4-11V/5A, 4-21V/4A
3. C3 (Max 140W):
PD → 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A, 28V/5A
PPS → 4-11V/5A, 4-21V/4A

Power distribution when using dual ports
1. C1 + C2/C3 (30W + 100W):
C1: PD → 5V/3A, 9V/3A, 12V/2.5A, 15V/2A, 20/1.5A
PPS → 4-11V/3A
C2 / C3: PD → 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20/5A
PPS → 4-11V/5A
2. C2 + C3 (65W + 65W):
C2: PD → 5V/3A, 9V/3A, 12V/3A, 15V3A, 20V/3.25A
PPS → 4-11V/5A
C3: PD → 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A
PPS → 4-11V/5A

Power distribution when using three ports
C1 + C2 + C3 (30W + 45W + 65W):
C1: PD → 5V/3A, 9V/3A, 12V/2.5A, 15V/2A, 20V/1.5A
PPS → 4-11V/3A
C2: PD → 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A
PPS → 4-11V/4A
C3: PD → 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A
PPS → 4-11V/3A

Supported charging protocols:
USB-C1/C2: PD3.0/2.0, PPS, QC 3.0/2.0, AFC, FCP, SCP
USB-C3: PD3.1/2.0, PPS, QC 3.0/2.0, AFC, FCP, SCP

Product Dimensions:
74.9× 75.3 × 33.5 mm

Included Plug Types:
Type A (USA), Type C (EU), Type G(UK).

Power Input:
AC 100-240V~50/60Hz, 3A.

Total Combined Max Power Output:
140W
